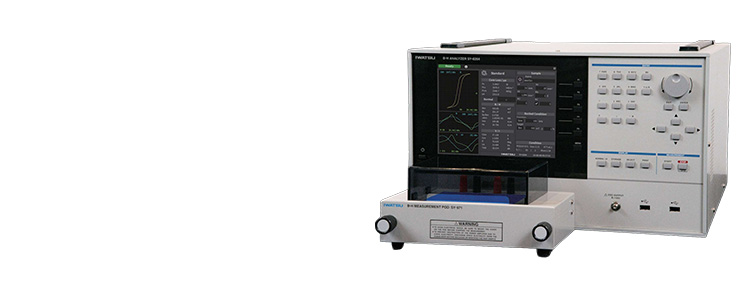

IWATSU BH Analyzer SY-8264 Series
■ Soft-Magnetic Material Characterization
■ Wide Frequency Range 10 Hz to 30 MHz
■ Phase Measurement Accuracy of +- 0.15° at 10 MHz
■ Signal Waveform SINE or PULSE
■ Max. Input Current ±6A, ±10A
■ Max. Input Voltage ±200V
■ Automatic Excitation at fixed Hm, Bm, I1m or V2m
- Automatically Degaussing after
Excitation to avoid Magnetization
■ Wide Frequency Range 10 Hz to 30 MHz
■ Phase Measurement Accuracy of +- 0.15° at 10 MHz
■ Signal Waveform SINE or PULSE
■ Max. Input Current ±6A, ±10A
■ Max. Input Voltage ±200V
■ Automatic Excitation at fixed Hm, Bm, I1m or V2m
- Automatically Degaussing after
Excitation to avoid Magnetization
IWATSU® BH Analyzer
SY-8264 Series
Iwatsu's B-H analyzers which hiring CROSS-POWER method (IEC62044-3) enable precise and highly accurate measurement embedded minimized phase error integration on frequency spectrum with current detecting resisters and compensation on detecting circuit with full compensation on amplitude and phase characteristics. After initial productr launch in year 1984, the third generation models are available now to contribute leading-edge power electronics research.
The latest Fequently Asked Questions - FAQ's - can be download here: Download FAQ's
