Passive Probes

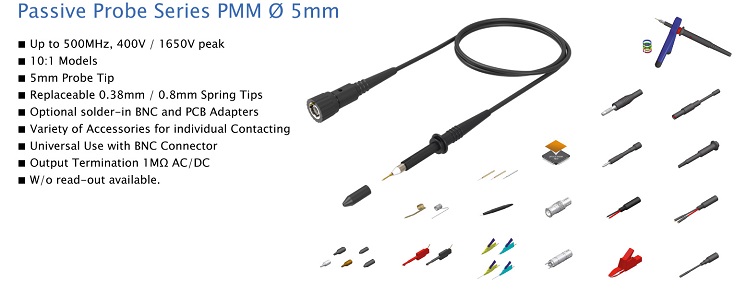

PMM Series, 500MHz, 1650V pk, 10:1
The compact design of the PMM probe series and a wide range of accessories allow for easy and individual adaptation.
The high input resistance and the low input capacitance allow measurements with lowest DUT load.
Models & Specifications
| Image | Notepad | Article | Attenuation | Bandwidth (-3 dB) | Input Voltage | Input Impedance | Rise time | Cable Length |
|---|---|---|---|---|---|---|---|---|
855-511-A00 PMM 511A | 10:1 | 500 MHz | 300 V CAT II (1) | 10 MΩ / 11 pF | 700 ps | 1.2 m | ||
855-511-A01 PMM 511A-RO | 10:1 | 500 MHz | 300 V CAT II (1) | 10 MΩ / 11 pF | 700 ps | 1.2 m | ||
855-512-A00 PMM 512A | 10:1 | 380 MHz | 300 V CAT II (1) | 10 MΩ / 13.5 pF | 0.95 ns | 2 m | ||
855-512-A01 PMM 512A-RO | 10:1 | 380 MHz | 300 V CAT II (1) | 10 MΩ / 13.5 pF | 0.95 ns | 2 m | ||
855-513-A00 PMM 513A | 10:1 | 250 MHz | 300 V CAT II (1) | 10 MΩ / 18 pF | 1.4 ns | 3 m | ||
855-513-A01 PMM 513A-RO | 10:1 | 250 MHz | 300 V CAT II (1) | 10 MΩ / 18 pF | 1.4 ns | 3 m | ||
855-515-A00 PMM 515A | 10:1 | 175 MHz | 300 V CAT II (1) | 10 MΩ / 23 pF | 2 ns | 5 m | ||
855-515-A01 PMM 515A-RO | 10:1 | 175 MHz | 300 V CAT II (1) | 10 MΩ / 23 pF | 2 ns | 5 m |
