SMD Tweezers

Image	Notepad	Article	Cable Type	Connector	Input Voltage	Cable Length
		685-041-120 TW 120 BAN Image	RG 174	2 gold-plated 4 mm Banana Plugs to 2 gold-plated Tweezer Tips	30 V AC / DC	120 cm
		685-010-120 TW 120 BNC Image	RG 174	1 BNC Connector to 2 gold-plated Tweezer Tips	30 V AC / DC	120 cm

Article

Cable Type

Connector

Input Voltage

Cable Length

685-041-120

TW 120 BAN


RG 174

2 gold-plated 4 mm Banana Plugs to 2 gold-plated Tweezer Tips

30 V AC / DC

120 cm

685-010-120

TW 120 BNC


RG 174

1 BNC Connector to 2 gold-plated Tweezer Tips

30 V AC / DC

120 cm

Fine Pitch Probe

Image	Notepad	Article	Cable Type	Description	Connector	Input Voltage	Cable Length
		688-120-01S FPP 120 BAN Fine Pitch Probes Datasheet Fine Pitch Probes Manual Image	0.75 mm²	Pair of 2.5 mm Probe head to 4 mm Bananaplugs	2 Banana Plugs 4 mm	30 V AC / 60 V DC	120 cm

Article

Cable Type

Description

Connector

Input Voltage

Cable Length

688-120-01S

FPP 120 BAN

Fine Pitch Probes Datasheet Fine Pitch Probes Manual Image

0.75 mm²

Pair of 2.5 mm Probe head to 4 mm Bananaplugs

2 Banana Plugs 4 mm

30 V AC / 60 V DC

120 cm

0,64 mm QFP IC-Clips

Article	Clamping Range	Contact	Connector	Input Voltage
890-502-300 QFP IC-Clips 0.2 - 0.5 mm pitch (1 Pair, yellow/green), short Image	0.2 - 0.5 mm	Grip Jaws	Pin 0.64 mm	40 V DC
891-510-300 QFP IC-Clips 0.2 - 0.5 mm pitch (5 Pairs, yellow/green), short Image	0.2 - 0.5 mm	Grip Jaws	Pin 0.64 mm	40 V DC
890-502-000 QFP IC-Clips 0.4 - 0.8 mm pitch (1 Pair, yellow/green), short Image	0.4 - 0.8 mm	Grip Jaws	Pin 0.64 mm	40 V DC
891-510-000 QFP IC-Clips 0.4 - 0.8 mm pitch (5 Pairs, yellow/green), short Image	0.4 - 0.8 mm	Grip Jaws	Pin 0.64 mm	40 V DC
890-502-130 QFP IC-Clips 0.4 - 0.8 mm pitch, (1 Pair, yellow/green), long Image	0.4 - 0.8 mm	Grip Jaws	Pin 0.64 mm	40 V DC
891-510-130 QFP IC-Clips 0.4 - 0.8 mm pitch, (5 Pairs, yellow/green), long Image	0.4 - 0.8 mm	Grip Jaws	Pin 0.64 mm	40 V DC

0.64 mm E-Z Hooks

Article	Clamping Range	Contact	Connector	Input Voltage
P25-0 Pico Hook™ (black) Image	up to Ø 1 mm	Grip Jaws	Pin 0.64 mm	60 V DC
P25-2 Pico Hook™ (red) Image	up to Ø 1 mm	Grip Jaws	Pin 0.64 mm	60 V DC
P25-S Pico Hook™ (Set 10 colors)	up to Ø 1 mm	Grip Jaws	Pin 0.64 mm	60 V DC
XKM-0 Double-gripper plug on, (black)
XKM-2 Double-gripper plug on, (red)
XKM-S Double-gripper plug on, (Set 10 colors)
XM25-0 Micro-hook plug on, (black)
XM25-2 Micro-hook plug on, (red)
XM25-S Micro-hook plug on, (Set 10 colors)
XR25-0 Mini-hook plug on, (black)
XR25-2 Mini-hook plug on, (red)
XR25-S Mini-hook plug on, (Set 10 colors)

0.64 mm Test Probes

Article	Clamping Range	Contact	Connector	Input Voltage
973972100 MICRO-KLEPS (black) Image	2 mm	Rotating Grip Jaws	2 Pins 0.64 mm	60 V DC
973972101 MICRO-KLEPS (red)	2 mm	Rotating Grip Jaws	2 Pins 0.64 mm	60 V DC
973592100 KLEPS 3 ST (black) Image	3.5 mm	Rotating Grip Jaws	Pin 0.64 mm	60 V DC
973592101 KLEPS 3 ST (red)	3.5 mm	Rotating Grip Jaws	Pin 0.64 mm	60 V DC
972416100 Micro SMD-Clip (black) Image	up to 8 mm	SMD Clip	2 Pins 0.64 mm	60 V DC
899-000-000 SMD Test Grabber, 0.8 mm Pin, black, Flex Nose
899-000-001 SMD Test Grabber, 0.8 mm Pin, red, Flex Nose
973995100 MICRO PRUEF MPS2 / 0.64 FT (black) Image	Ø 0.75 mm	Springloaded Tip	Pin 0.64 mm, gold-plated	60 V DC
973995101 MICRO PRUEF MPS2 / 0.64 FT (red)	Ø 0.75 mm	Springloaded Tip	Pin 0.64 mm, gold-plated	60 V DC

4 mm Clamp-type Test Probes

Article	Clamping Range	Contact	Connector	Input Voltage	Current
930113100 KLEPS 30 (black) Image	4 mm	Rotating Grip Jaws	4 mm Socket or Screw Connection	60 V DC
930113101 KLEPS 30 (red)	4 mm	Rotating Grip Jaws	4 mm Socket or Screw Connection	60 V DC
972306100 KLEPS 2600 (black) Image	4 mm	Rotating Grip Jaws	4 mm Safety Socket	1000 V CAT III	20 A
972306101 KLEPS 2600 (red)	4 mm	Rotating Grip Jaws	4 mm Safety Socket	1000 V CAT III	20 A
972307100 KLEPS 2700 (black) Image	1.5 mm²	Solid Tip, Stainless Steel	4 mm Safety Socket	1000 V CAT III	20 A
972307101 KLEPS 2700 (red)	1.5 mm²	Solid Tip, Stainless Steel	4 mm Safety Socket	1000 V CAT III	20 A
972308100 KLEPS 2800 (black) Image	10 mm	Grip Jaws	4 mm Safety Socket	1000 V CAT III	20 A
972308101 KLEPS 2800 (red)	10 mm	Grip Jaws	4 mm Safety Socket	1000 V CAT III	20 A
972309100 KLEPS 2900 (black) Image	5.5 mm	Hook	4 mm Safety Socket	1000 V CAT III	20 A
972309101 KLEPS 2900 (red)	5.5 mm	Hook	4 mm Safety Socket	1000 V CAT III	20 A

4 mm Test Probes

Article	Clamping Range	Contact	Connector	Input Voltage
973368100 PRUEF 2 (black) Image		Grip Jaws	Pin 0.64 mm	60 V DC
973368101 PRUEF 2 (red)		Grip Jaws	Pin 0.64 mm	60 V DC
972317100 PRUEF 2600 (black) Image	Ø 2 mm	Solid Tip	4 mm Safety Socket	1000 V CAT III
972317101 PRUEF 2600 (red)	Ø 2 mm	Solid Tip	4 mm Safety Socket	1000 V CAT III
972318100 PRUEF 2600 FT (black) Image	Ø 0.75 mm	Springloaded Tip	4 mm Safety Socket	1000 V CAT III
972318101 PRUEF 2600 FT (red)	Ø 0.75 mm	Springloaded Tip	4 mm Safety Socket	1000 V CAT III
972319100 PRUEF 2700 (black) Image	Ø 4 mm, Lamelar Cage	Solid Tip	4 mm Safety Socket	1000 V CAT III
972319101 PRUEF 2700 (red)	Ø 4 mm, Lamelar Cage	Solid Tip	4 mm Safety Socket	1000 V CAT III

4 mm Alligator Clips

Image	Notepad	Article	Description
		930122000 AGF 30 Image	Clamp, stainless steel
		932146100 AK 2 S-SW	Clamp with threaded connector (black)
		932146101 AK 2 S-RT	Clamp with threaded connector (red)
		932435100 AK 2 B-SW	Clamp (black)
		932435101 AK 2 B-RT	Clamp (rot)

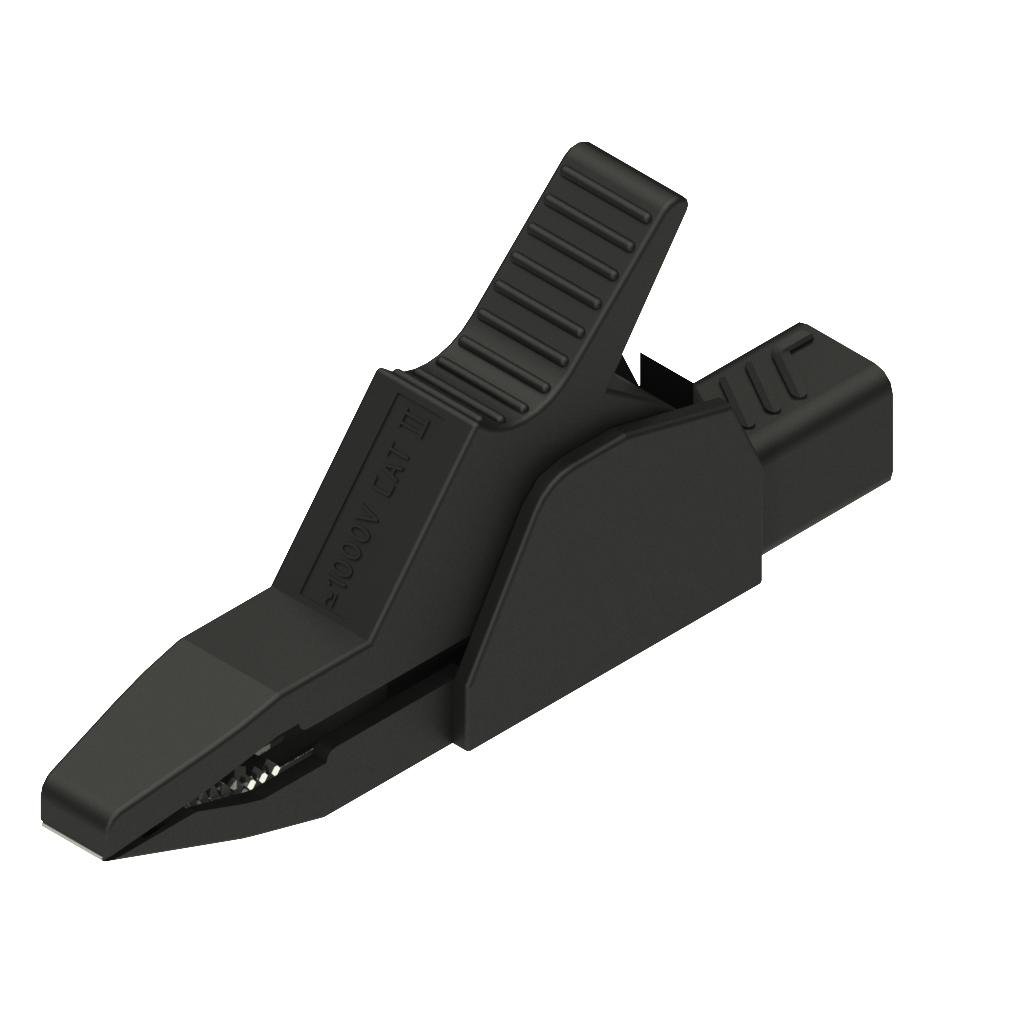

		972405100 AK 2 B 2540 I-SW Image	Safety-Alligatorclip (black)

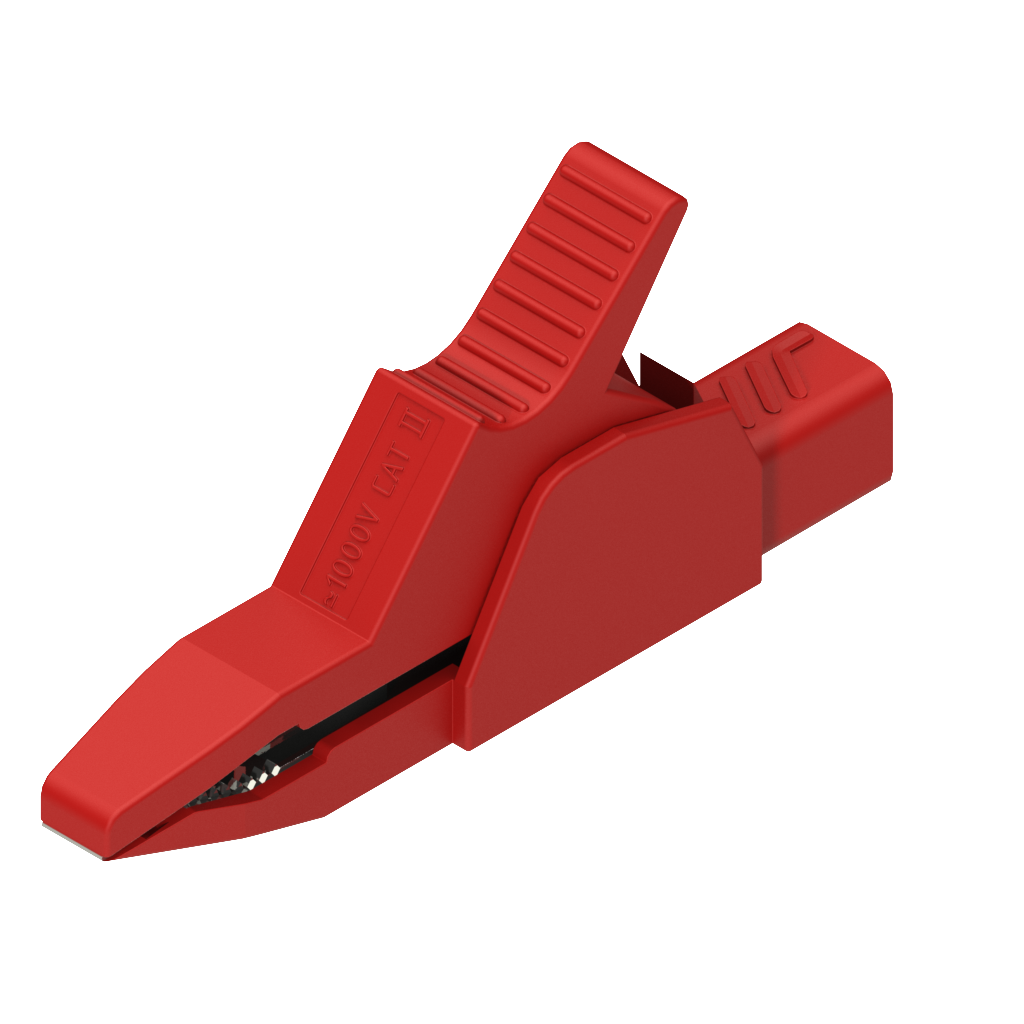

		972405101 AK 2 B 2540 I-RT Image	Safety-Alligatorclip (red)
